Henkion OTDR Optical Fiber Tester 1310/1550nm 28/26dB Range 150km Optic Fiber Test IPC Tester TVI/CVI/AHD/CVBS Cable Test Network Tools Connectors FC/UPC,SC,ST,LC OPM OLS LS Event Map
US$167.96
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by holwick.biz
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$167.96
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by holwick.biz
Free 30-day returns Details
Product details
| Management number | 211306723 | Release Date | 2026/04/04 | List Price | US$167.96 | Model Number | 211306723 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

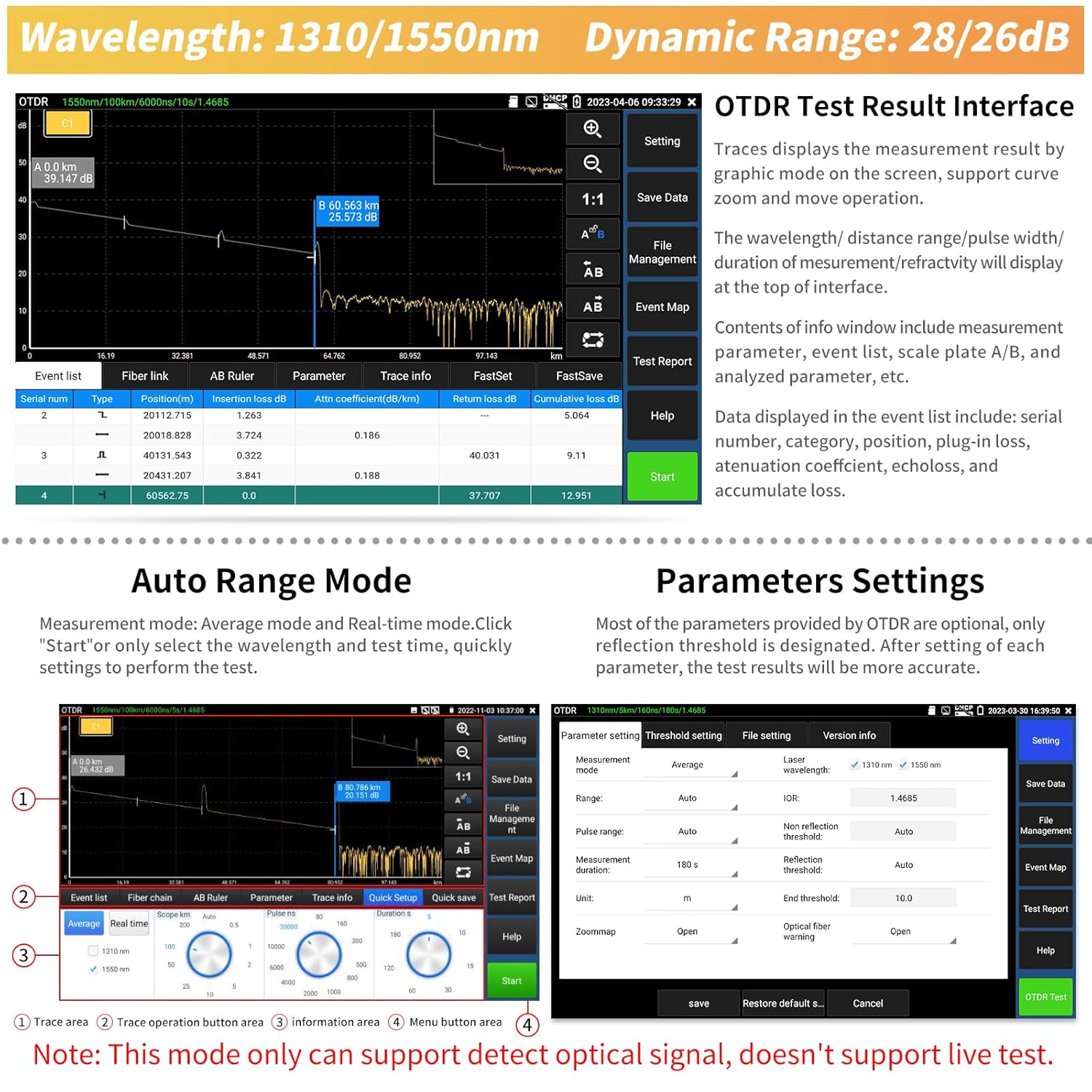

- 【Intelligent OTDR measurement】OTDR fiber optical tester provides wavelength of 1310/1550nm and dynamic range of 28/26dB,the max test distance 150km.For auto range mode: can one click start test,only select the wavelength and test time,quickly perform the test.For parameters setting mode:Testing after setting parameters distance scope,pulse width,duration of measurement etc.Curvest/ map are displayed simultaneously. Pls note:This mode only can detect optical signal,doesn't support live test.

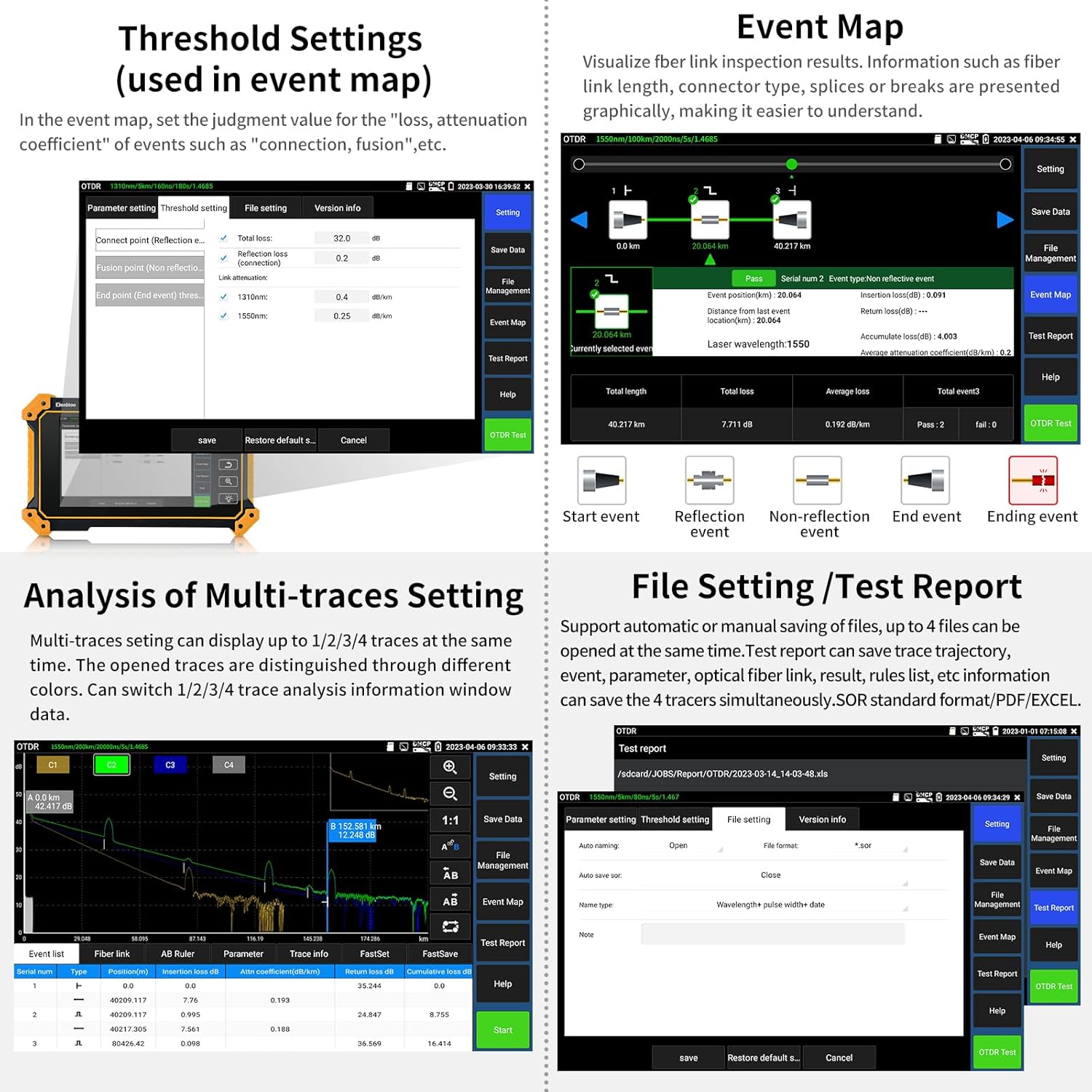

- 【Curve Analysis & Shortest EDZ ADZ & Data Storage】The OTDR fiber tester can analyzes the curve automatially,touch screen zoom or move curves operation.The tested results are displayed in the form of a list.Event list clearly reflects the type of event,distance,loss,decay,reflection. Shortest event dead zone (1.6m) and attenuation dead zone (8m). Support automatic or manual save the most of 4 traces simultaneousiy,creat trace reports to the storage path.SOR standard file format PDF/EXCEL.
- 【 OPM LS OLS Tools&WIFI】5.4 inch IPS touch screen OTDR tester,1920x1152 resolution.OPM--It is used for optical power testing and fiber link loss relative measurement. LS--To test multi-mode and single mode fibers bending and breakage,test range 8KM (26246fts).OLS--used to test the insertion loss of optical passive devices.Built-in Wifi,creat wifi hotspot,wifi analyze.
- 【Event map&Cable Tester&Network tool】Event map can one key automatic test,and the information such as the length of the optical fiber link to be measured,the type of the joint and the position of the breakpoint are displayed graphically.UTP cable test.RJ45 TDR cable. With Cable tracer,can quickly find out the BNC cable,network cable and telephone cable from the mess cables.Non-contact voltage detection,PD power test.Network test tools trace route,link monitor,DHCP server,port flashing,ping test.
- 【CCTV Camera Tester】CCTV tester supports max 12MP 4000x3000P 4K IP Camera test. IP discovery. Support batch activate for Hik & DH cameras and modify IP address,password etc. Auto HD APP can automatically recognize max 8MP (3840x2160P)TVI/CVI/AHD/CVBS coaxial camera type.NTSC/PAL(Auto adapt). PTZ control,call OSD menu,RS485 control.PoE voltage test,PoE IEEE802.3af/at 48V,max25.5W. DC24V/2A,DC12V/3A,5V/2A power output. Power management.Android 10.0 operation system.
| Color | Orange |
|---|---|
| Model | RSO-5510 |
| Brand Name | Henkion |
| Style Name | Industrial |
| Item Weight | 1.9 Pounds |
| Manufacturer | Henkion |
| Power Source | Battery Powered |
| Measurement Type | Distance, Signal Quality |
| Specification Met | Ul 61010-1, Ce Marked, Rohs Compliant |

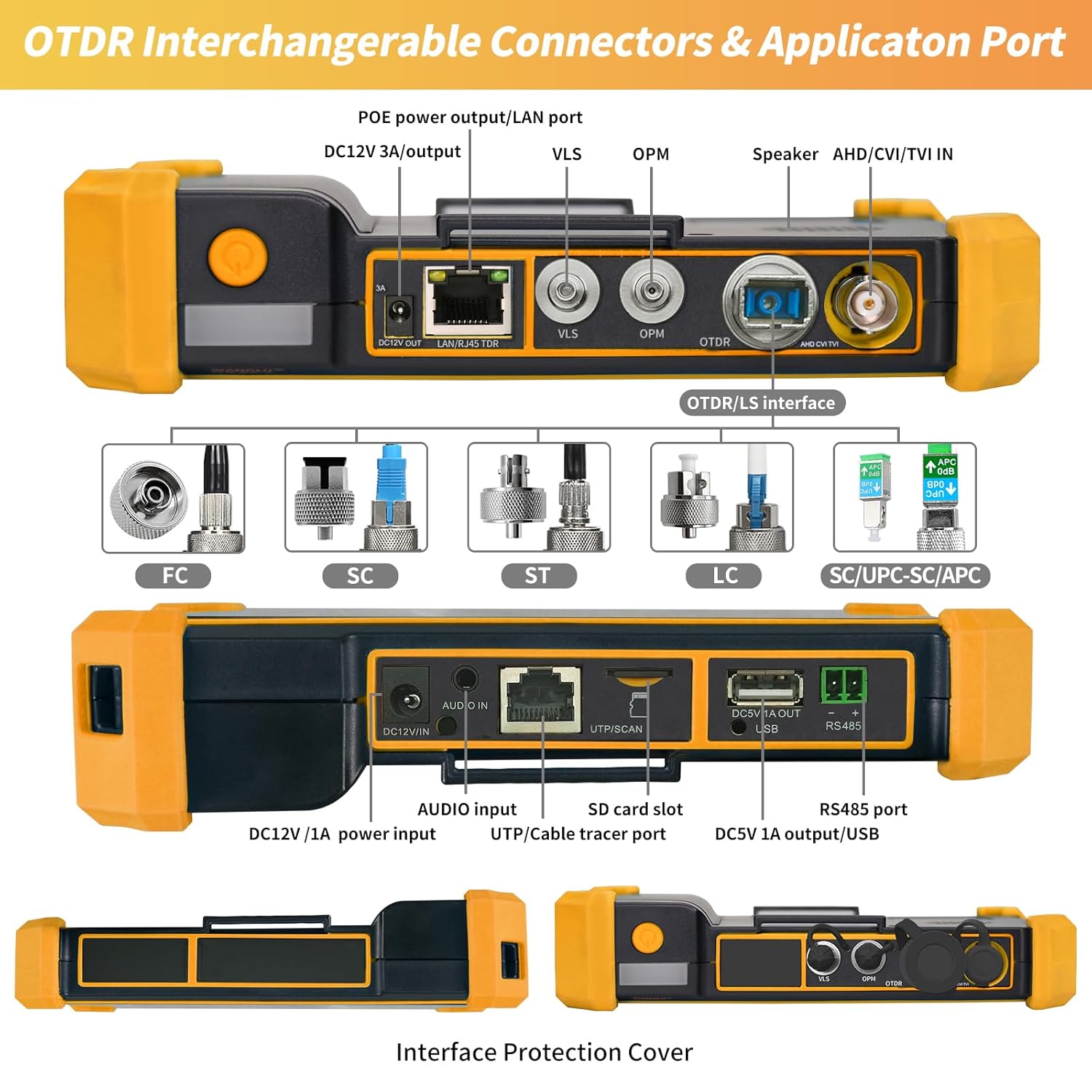

| Included Components | Connectors FC/UPC,SC,ST,LC Cable Tracer |
| Minimum Operating Voltage | 7.4 Volts (DC) |
