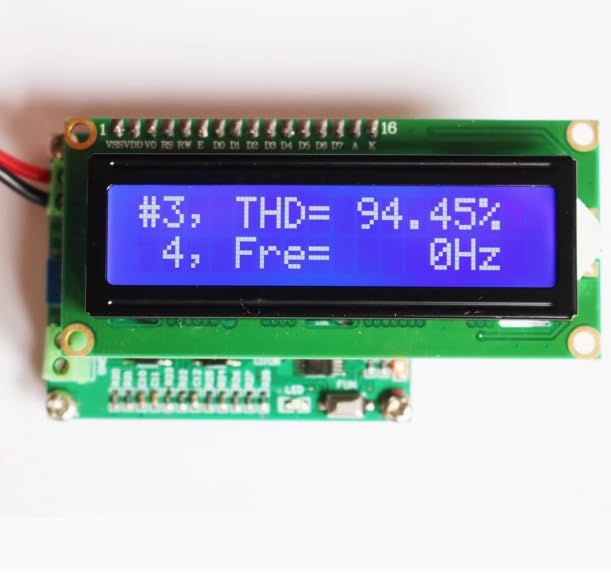

Digital Harmonic Distortion Meter 10Hz~20KHz 3rd Harmonic Frequency Display
Product details
| Management number | 221445645 | Release Date | 2026/05/03 | List Price | US$14.40 | Model Number | 221445645 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1、 Overview: HDM212 is a harmonic distortion meter that mainly detects the ratio of the fundamental wave to the third harmonic of a sine wave signal. Most harmonic problems are caused by the 3rd harmonic. Due to the fact that the third harmonic is the second highest energy of the fundamental component. Therefore, our focus is only on discovering the 3rd harmonic distortion using formula 1. THD = V3/V1*100% (1) Annotation: V1： Fundamental wave; V3： 3rd harmonic; THD： Harmonic distortion degree; 2、 Product application: Harmonic distortion meter; ● Frequency meter; 3、 Technical parameter table: Number Project Parameters Unit Remarks 1. Measurement frequency range: 10-20000 Hz 2. Measurement voltage range: 1-10 VDC, maximum amplitude: 10.0Vpp AC signal 3. Measurement distortion ranging from 0.1% to 100.0% 4. Operating voltage: 7-12 VDC 5 working current<50 mA Size 6: 56 * 45 * 20 mm, length X width X height 7 weight 50 g
- Measurement frequency range: 10-20000 Hz
- Measurement voltage range: 1-10 VDC, maximum amplitude: 10.0Vpp AC signal
- Operating voltage: 7-12 VDC
- working current<50 mA
| Brand Name | YILUBAO |
|---|---|
| Part Number | HP827 |
| Manufacturer | YILUBAO |
| Included Components | see details |
